Loja Online > Switches KVM e Extensores > Switches KVM Enterprise > Emerald® KVM over IP Matrix Switch, 100GbE, 32-Port
EMS100G32: KVM over IP, 100G, (32) QSFP28 10/25/40/50/100G + (2) SFP+1/10G
A foto pode variar do produto real
EMS100G32: KVM over IP, 100G, (32) QSFP28 10/25/40/50/100G + (2) SFP+1/10G
EMS100G32: KVM over IP, 100G, (32) QSFP28 10/25/40/50/100G + (2) SFP+1/10G
EMS100G32: KVM over IP, 100G, (32) QSFP28 10/25/40/50/100G + (2) SFP+1/10G
EMS100G32: KVM over IP, 100G, (32) QSFP28 10/25/40/50/100G + (2) SFP+1/10G


Emerald® KVM over IP Matrix Switch, 100GbE, 32-Port

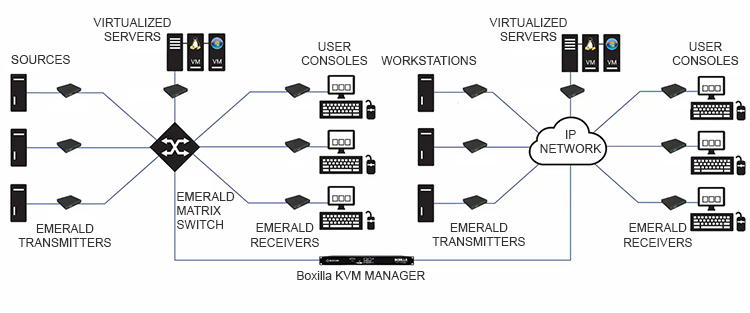

Create a free configurable KVM over IP Switching Matrix and Extension system connecting your Emerald transmitters and receivers via IP


  • Use with any type of Emerald transmitters and receivers to create a powerful KVM over IP Switching Matrix.
  • Up to 6.4Tbps of switching I/O bandwidth (full duplex) available and non-blocking switching fabric delivering line-rate performance under full load with sub usec latency.
  • 1RU high-density switch with (32) 100Gbps (QSFP28) and two SFP+ 1/10G cages.
  • Scalable L2 and L3 Ethernet switching with QOS and a full complement of standards-based IPV4 and IPV6 features, including OSPF and BGP routing support.
  • L2 multipath support via virtual link trunking (VLT) and multiple VLT multi-chassis link aggregation technology.
  • L2 multipath support via virtual link trunking (VLT) and multiple VLT multi-chassis link aggregation technology.
  • Open automation framework adding automated configuration and provisioning capabilities to simplify management of network environments.
  • Jumbo frame support for large data transfers.
  • Jumbo frame support for large data transfers.
  • 128 link aggregation groups with up to (8) members per group, using enhanced hashing.
  • Power-efficient operation up to 45°C, helping to reduce cooling costs in temperature-constrained deployments.
  • Redundant, hot-swappable power supplies and fans.
  • I/O panel to power supply airflow or power supply to I/O panel airflow.
  • Tool-less mounting kits reduce time and resources for switch rack installation.
  • Garantia: 2 anos de garantia Double Diamond™

Share |
  Produto       Código   Preço Unitário
KVM over IP
100G

(32) QSFP28 10/25/40/50/100G + (2) SFP+1/10G
  100G Emerald KVM over IP Matrix Switch
100G Emerald KVM over IP Matrix Switch
  EMS100G32   Faça seu login para ver os preços.
Please contact our Sales department.

Acessórios

  Produto     Código   Preço Unitário

  QSFP28, 100-Gbps, OM4, MPO - 70m, MPO, OM3
QSFP28, 100-Gbps, OM4, MPO
  QSFP441   Faça seu login para ver os preços.
  QSFP28, 100-Gbps, WDM Single-mode - 10km, LC Duplex, OS1 WSM
QSFP28, 100-Gbps, WDM Single-mode
  QSFP442   Faça seu login para ver os preços.
Opção/Software/Firmware
  Replacement Fans and Power Supplies for the EMS100G32 Emerald Switch
Replacement Fans and Power Supplies for the EMS100G32 Emerald Switch
  EMS100G32BUN   Faça seu login para ver os preços.
  Replacement Fan for the EMS100G32 Emerald Switch
Replacement Fan for the EMS100G32 Emerald Switch
  EMS100G32FAN   Faça seu login para ver os preços.
  SFP+, 10-Gbps, 850-nm MM LC, 300-m - 850nm MM LC, 300m
SFP+, 10-Gbps, 850-nm MM LC, 300-m
  LSP421   Faça seu login para ver os preços.
  SFP+, 10-Gbps, 1310-nm SM LC, 10-km - 1310nm SM LC, 10km
SFP+, 10-Gbps, 1310-nm SM LC, 10-km
  LSP422   Faça seu login para ver os preços.
  SFP+, 10-Gbps, Extended Temp., 850-nm MM LC, 300-m - 850nm MM LC, 300m
SFP+, 10-Gbps, Extended Temp., 850-nm MM LC, 300-m
  LSP431   Faça seu login para ver os preços.
  SFP+, 10-Gbps, RJ-45 - 30m, RJ-45, CATx
SFP+, 10-Gbps, RJ-45
  LSP443   Faça seu login para ver os preços.
  Emerald® SE DVI KVM-over-IP Extender Transmitter - Single-Head, V-USB 2.0, Audio - (1) Single link DVI-D, 4x V-USB 2.0, audio, Transmitter
Emerald® SE DVI KVM-over-IP Extender Transmitter - Single-Head, V-USB 2.0, Audio
  EMD2000SE-T   Faça seu login para ver os preços.
  Emerald® SE DVI KVM-over-IP Extender Receiver - Single-Head, V-USB 2.0, Audio, Virtual Machine Access - (1) Single link DVI-D, 4x V-USB 2.0, audio, VM-access, Receiver
Emerald® SE DVI KVM-over-IP Extender Receiver - Single-Head, V-USB 2.0, Audio, Virtual Machine Access
  EMD2000SE-R   Faça seu login para ver os preços.
  Emerald® SE DVI KVM-over-IP Extender Transmitter - Dual-Head, V-USB 2.0, Audio - (2) Single link DVI-D, 4x V-USB 2.0, audio, Transmitter
Emerald® SE DVI KVM-over-IP Extender Transmitter - Dual-Head, V-USB 2.0, Audio
  EMD2002SE-T   Faça seu login para ver os preços.
  Emerald® SE DVI KVM-over-IP Extender Receiver - Dual-Head, V-USB 2.0, Audio, Virtual Machine Access - (2) Single link DVI-D, 4x V-USB 2.0, audio, VM-access, Receiver
Emerald® SE DVI KVM-over-IP Extender Receiver - Dual-Head, V-USB 2.0, Audio, Virtual Machine Access
  EMD2002SE-R   Faça seu login para ver os preços.
  DisplayPort KVM over IP Matrix Switch Emerald® TX/RX - 4K60Hz - USB 2.0, Audio - (1) DisplayPort 1.2 (4K60), 4x USB transparent, audio, serial, Transmitter
DisplayPort KVM over IP Matrix Switch Emerald® TX/RX - 4K60Hz - USB 2.0, Audio
  EMD4000T   Faça seu login para ver os preços.
  DisplayPort KVM over IP Matrix Switch Emerald® TX/RX - 4K60Hz - USB 2.0, Audio - (1) DisplayPort 1.2 (4K60), 4x USB transparent, audio, serial, Receiver
DisplayPort KVM over IP Matrix Switch Emerald® TX/RX - 4K60Hz - USB 2.0, Audio
  EMD4000R   Faça seu login para ver os preços.
  Boxilla® Centralised KVM AV/IT Manager - Management Platform for up to 25 end points
Boxilla® Centralised KVM AV/IT Manager
  BXAMGR   Faça seu login para ver os preços.
  Boxilla® Centralised KVM AV/IT Manager - Management Platform for up to 100 end points
Boxilla® Centralised KVM AV/IT Manager
  BXAMGR-100   Faça seu login para ver os preços.
  Boxilla® Centralised KVM AV/IT Manager - Management Platform for up to 200 end points
Boxilla® Centralised KVM AV/IT Manager
  BXAMGR-200   Faça seu login para ver os preços.
  Boxilla® Centralised KVM AV/IT Manager - Management Platform for up to 300 end points
Boxilla® Centralised KVM AV/IT Manager
  BXAMGR-300   Faça seu login para ver os preços.
  Boxilla® Centralised KVM AV/IT Manager - Management Platform for up to 50 end points
Boxilla® Centralised KVM AV/IT Manager
  BXAMGR-50   Faça seu login para ver os preços.
  ControlBridge Touch Panel - 12"
ControlBridge Touch Panel
  CB-TOUCH12-T   Faça seu login para ver os preços.
  ControlBridge Touch Panel - 7"
ControlBridge Touch Panel
  CB-TOUCH7-T   Faça seu login para ver os preços.
  Freedom II KVM Switch - 4 ports
Freedom II KVM Switch
  KV0004A-R2   Faça seu login para ver os preços.
Rack/Kit de Montagem
  Kit de montagem em rack para o Emerald 4K (1 ou 2 unidades)
Kit de montagem em rack para o Emerald 4K (1 ou 2 unidades)
  EMD4000-RMK1   Faça seu login para ver os preços.
