Keyboard, Video and Audio Connectors

DVI

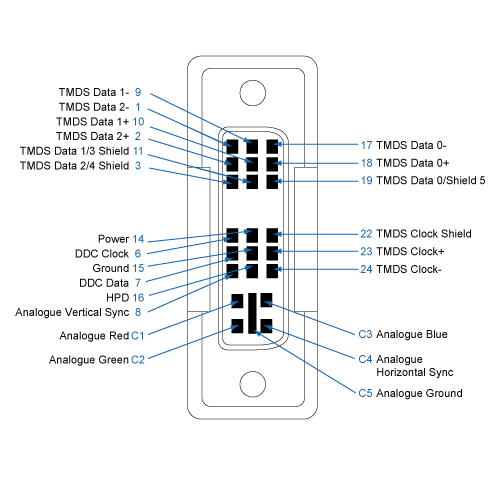

DVI-I Single Link

DVI-I Single Link Connector
See pinning diagram

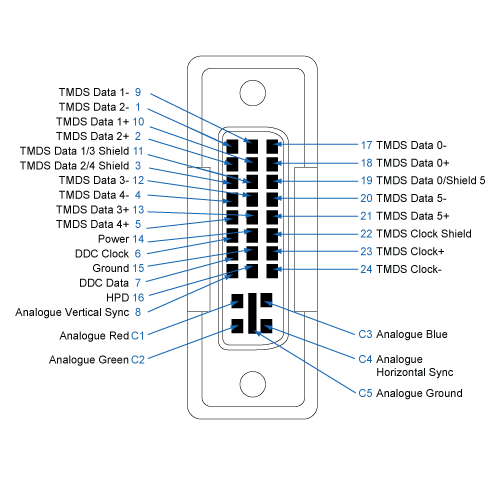

DVI-I Dual Link

DVI-I Dual Link Connector
See pinning diagram

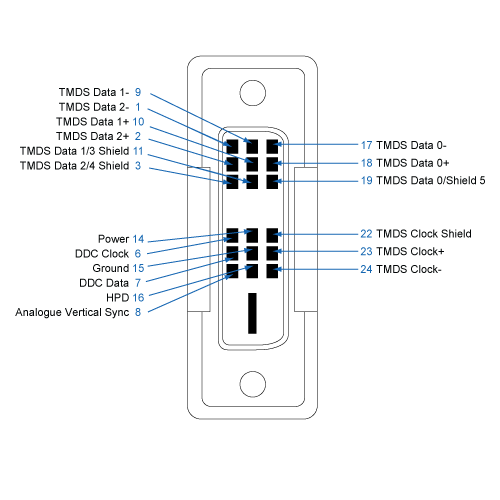

DVI-D Single Link

DVI-D Single Link Connector
See pinning diagram

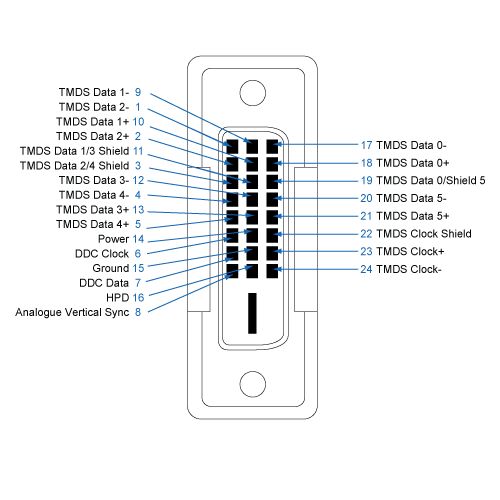

DVI-D Dual Link

DVI-D Dual Link Connector
See pinning diagram

DisplayPort

Mini DisplayPort

Mini DisplayPort Connector
See pinning diagram

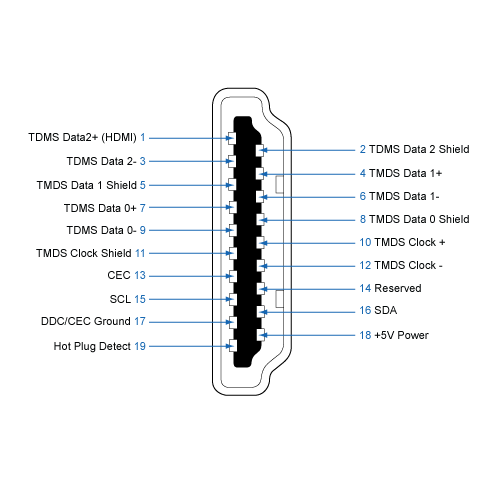

HDMI

Miscellaneous

TOSLINK

TOSLINK Interface

RCA

RCA Interface

BNC

BNC

F-Type Coax

F-Type Coax

NOTE: Images are not to scale.
