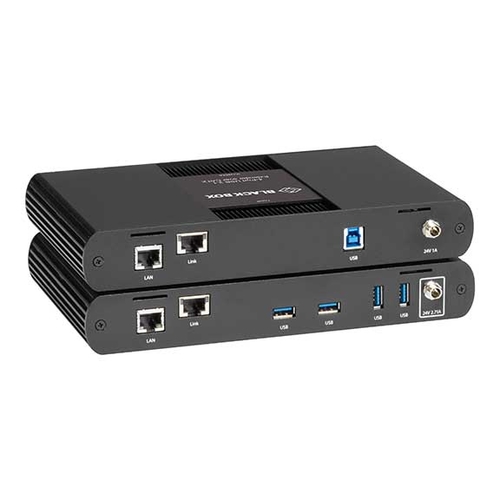

USB 3.1 Extender over CATx, 4-Port

Industry-first USB 3, 2 and 1 extender
Extend all your USB devices. This USB Extender provides the ability to connect all USB 3.1 Gen 1 (5 Gbps) device types and is backward compatible with USB 2.0 and 1.1.
This unique solution is the only USB extender capable of CAT X 3.0 extension.

Great extension length
Get your USB connections where they need to go. This USB 3.1 Extender extends up to 100m over CAT6A/7 cable.

Faster than any other USB extender
Never worry about slow USB transfer speeds again. This USB 3.1 Extender provides USB speeds 10x faster than any other USB 2 extender on the market. This makes large file and multiple file transfers significantly faster, saving you valuable time.

Additionally, these hyper-fast USB transfer speeds mean superior support for USB 3 cameras.

Leverage your existing network infrastructure
The USB Extender features an Ethernet side channel that lets you use your existing network infrastructure without having to run additional dedicated cable. Also, it allows users to connect Ethernet capabilities of devices through the extender without running a separate cable, making it perfect for PTZ applications.

Applications:
Use this USB Extender to connect to conferencing cameras, docking stations, interactive white boards, touch screens, flash and hard drives, keyboards, mouse, USB to video converters, audio devices, an any other USB 3, 2 and 1 device.
Perfect for:

• Conference Rooms and Huddle Spaces
• Connectivity to Medical Imagery
• Access to Remote Storage Systems
• Monitoring of Security Cameras and other Security Systems
• Video Matrix Systems

Compatibility —
Devices: All device types & classes (control, interrupt, & bulk);
Host: OHCI, UHCI, EHCI, xHCI
Bandwidth — USB: up to 5-Gbps
Range — Up to 100m over CAT6A/7
Speed — USB: SuperSpeed 5-Gbps, high-speed, full-speed, low-speed
Available Current — Remote: 1.2A (6W) per USB port
Connected Devices (Maximum) — 30
Connectors —
Local:
(1) USB 3.1 B receptacle,
(1) RJ45 Ethernet 100/1000,
(1) RJ45 Link,
(1) 24V 1A DC locking jack;
Remote:
(4) USB 3.1 A receptacle,
(1) RJ45 Ethernet 100/1000,
(1) RJ45 Link,
(1) 24V 2.71A DC locking jack
Compliance — EMC: FCC (Class B), CE (Class B), RoHS2, REACH, Conflict Minerals
Dimensions — 1.3"H x 9.1"W x 5.4"D (3.3 x 23.1 x 13.7 cm)
Operating Humidity — 10-80%, non-condensing
Operating Temperature — 0° - 50°C (32° - 122°F)
Weight — (Each Extender) 1.9 kg (4.2 lbs.)

(1) Local Extender
(1) Remote Extender
(1) USB 3.1 Cable
(2) International Locking AC Adapter
(2) Power Cord
(1) Quick Start Guide
